Red's cable INS101 Instrument kabel 1x0.5mm² double shielded per meter

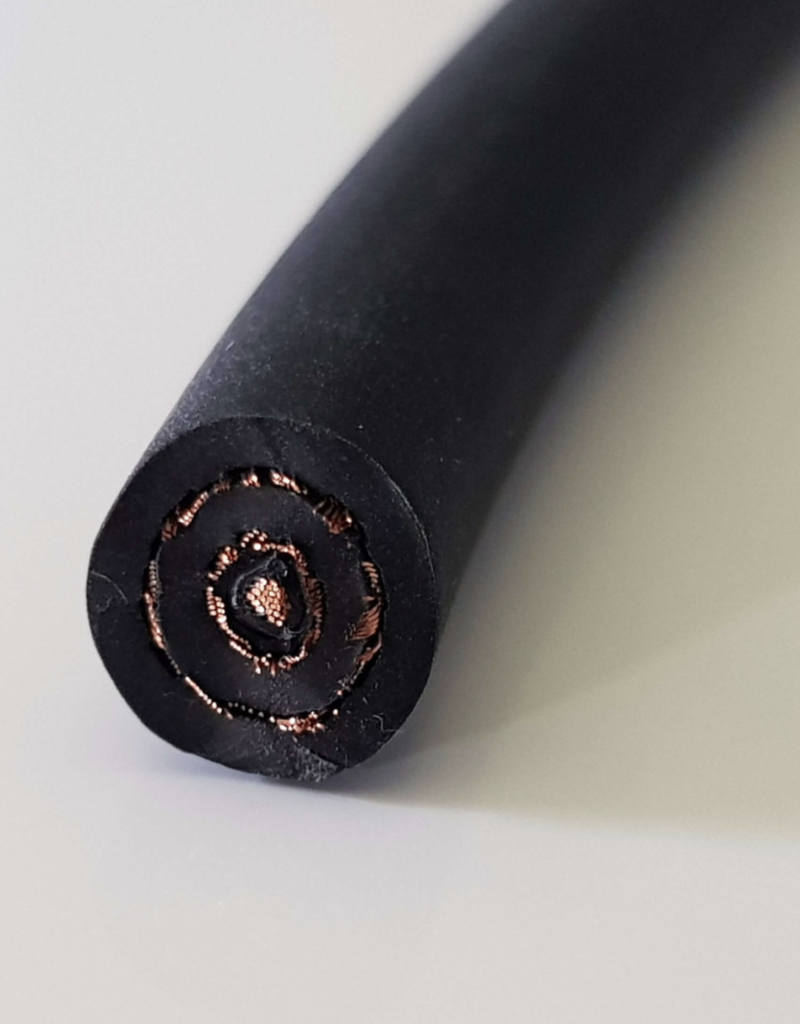

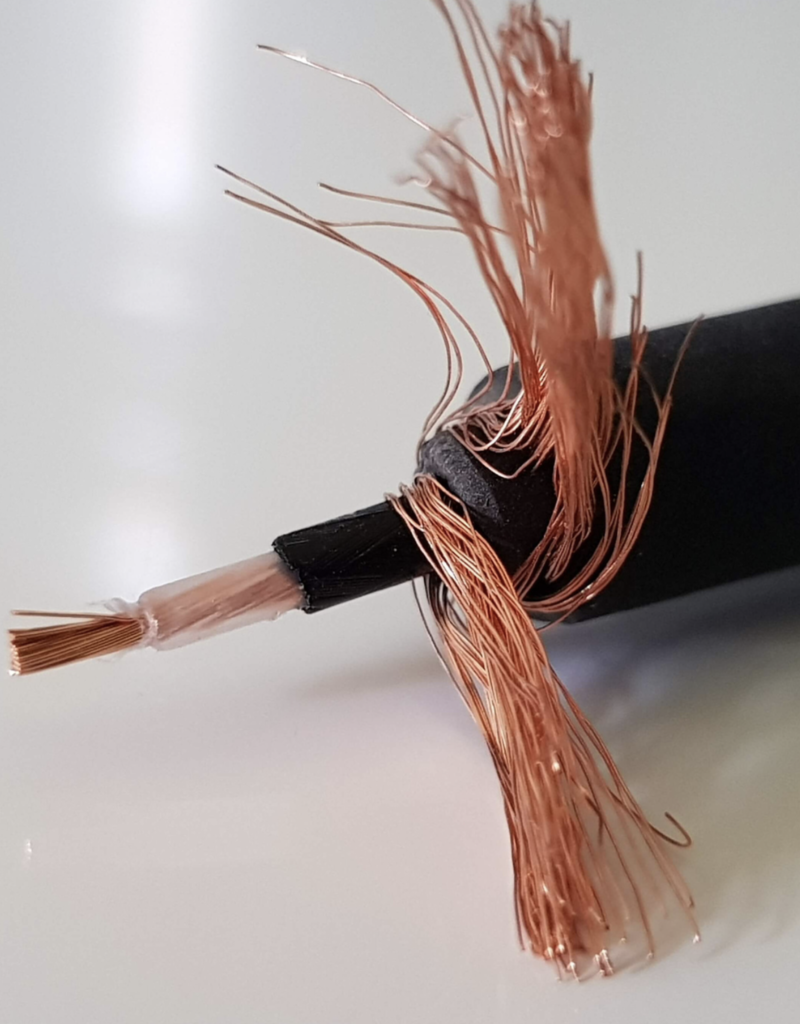

Cable construction:
Internal cable: 1 x 0.5 mm²
Shielding: copper wire (double mesh braid - ≥90% coverage) and conductive plastic
Filling: conductive plastic shielding coating
Conductor insulation: PE - transparent
Cable specifications:
Operating temperature: -20°C to 65°C (fixed installations) / -5°C to 65°C (mobile installations)
Minimum laying temperature: 5°C
Capacity (1kHz): conductor-shield: ≤80nF/km
Resistance of conductors: 39.1Ω/km DC
Screen resistance: 16.3Ω/km DC
Insulation resistance: >10.0GΩ/km
Minimum bending radius: 40mm - 5xØ (Ø - outside diameter)
Outer diameter of the cable: 7.2 mm
Mass: approximately 63kg/km
General Data:
Country of production: Poland
