Red's cable INS100 Instrument kabel 1x0.23mm² per meter

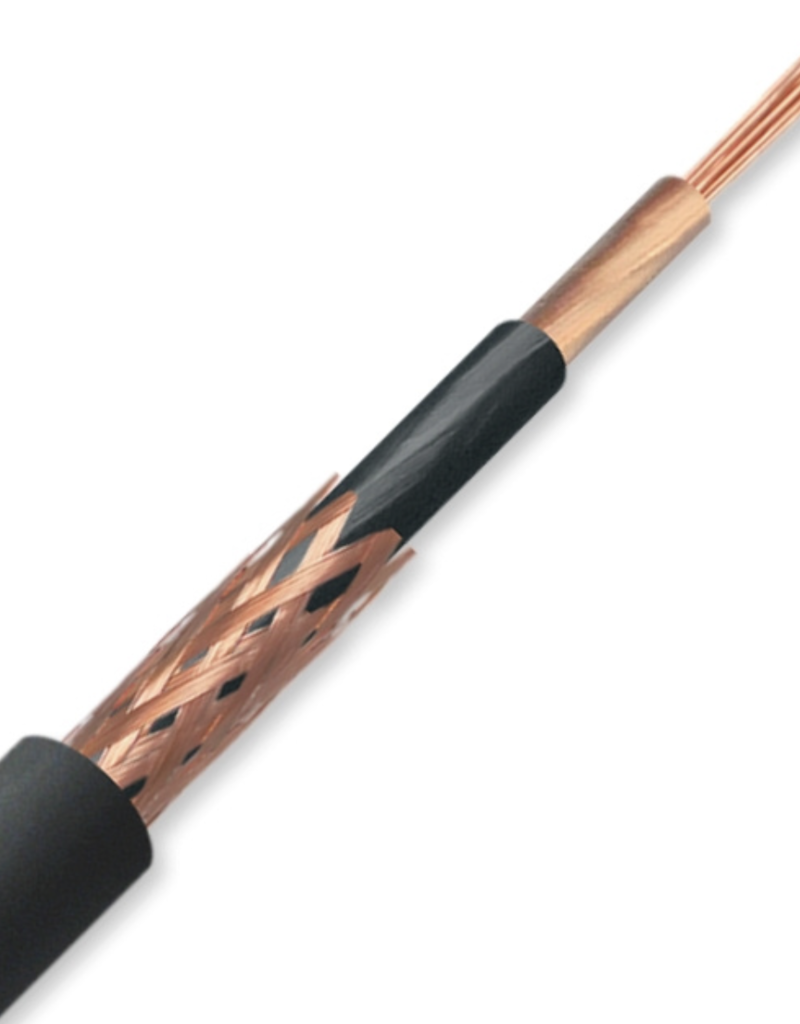

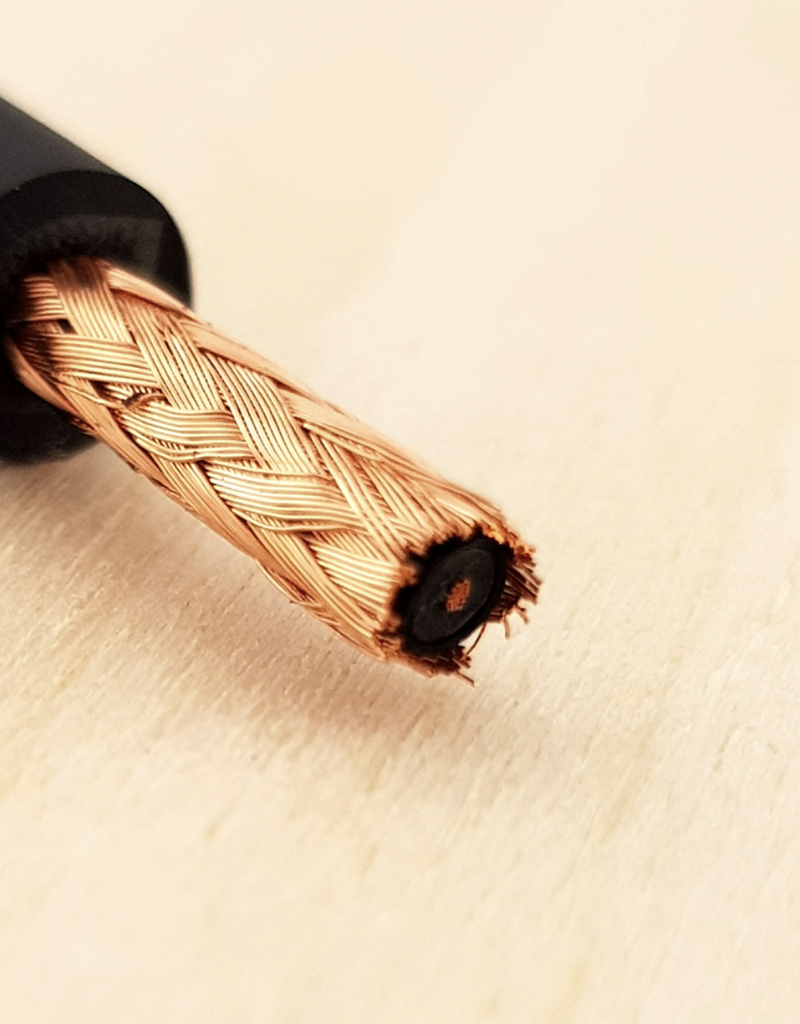

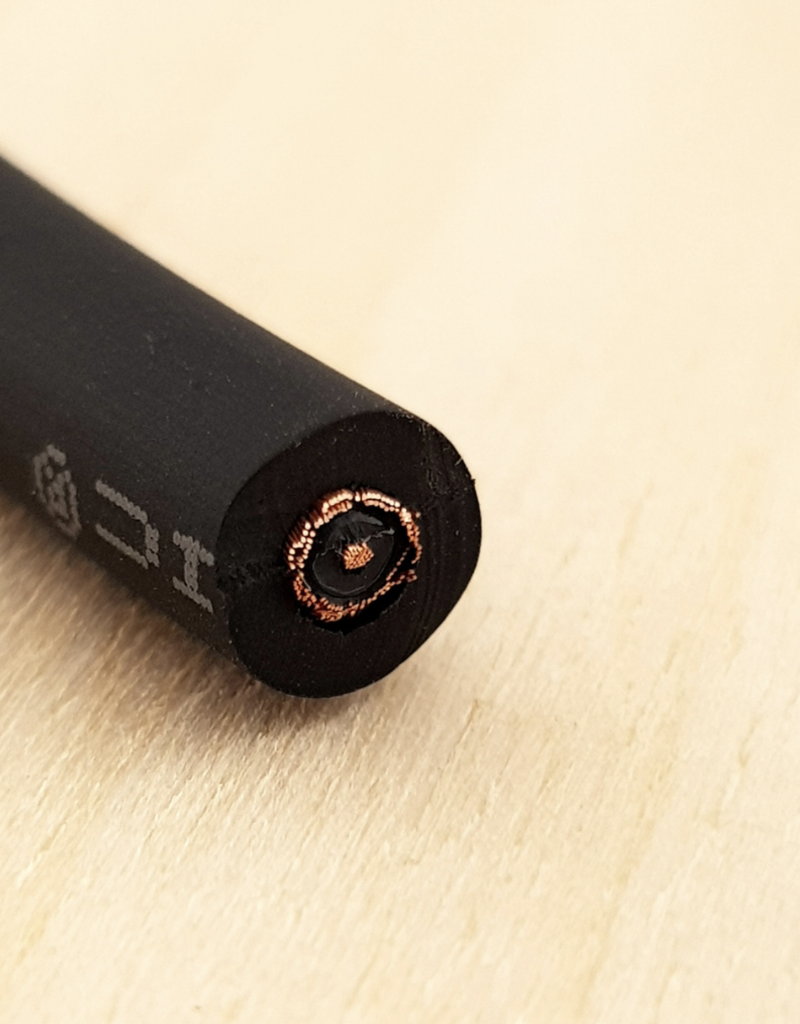

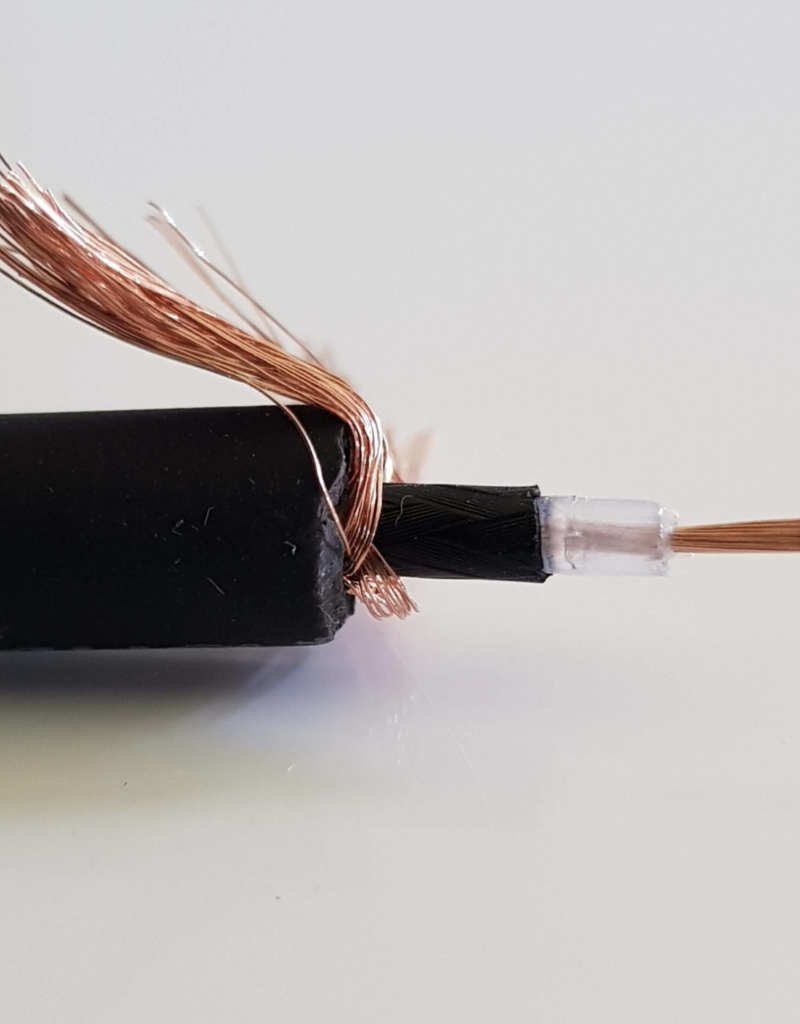

Cable construction:
Internal cable: 1 x 0.23mm²
Shielding: copper wire (mesh braid - coverage ≥90%) and conductive plastic
Conductor insulation: PE - transparent
Coating insulation: PVC
Cable specifications:
Operating temperature: -25°C to 65°C (fixed installations) / -5°C to 65°C (mobile installations)
Minimum laying temperature: -5°C
Capacity (1kHz): conductor-shield: ≤110nF/km
Resistance of conductors: 71.5Ω/km DC
Screen resistance: 17.5Ω/km DC
Insulation resistance: >10.0GΩ/km
Minimum bending radius: 30mm - 5xØ (Ø - outside diameter)
Outer diameter of the cable: 6.0 mm
Mass: approximately 52kg/km
General Data:
Country of production: Poland
