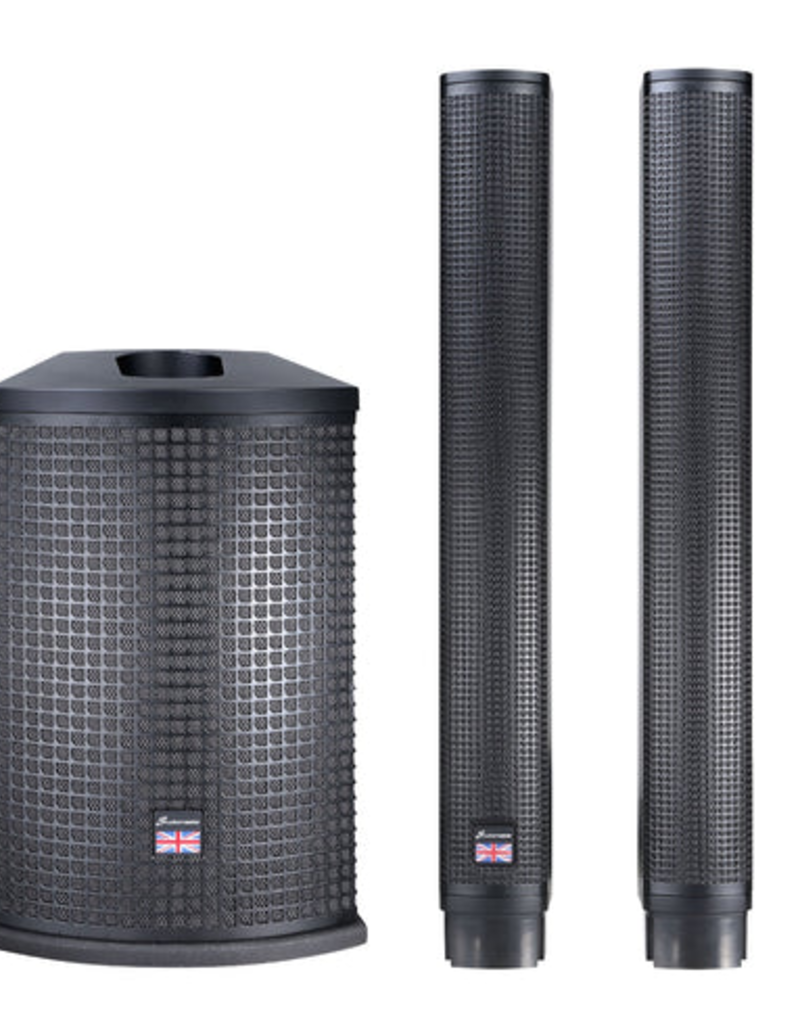

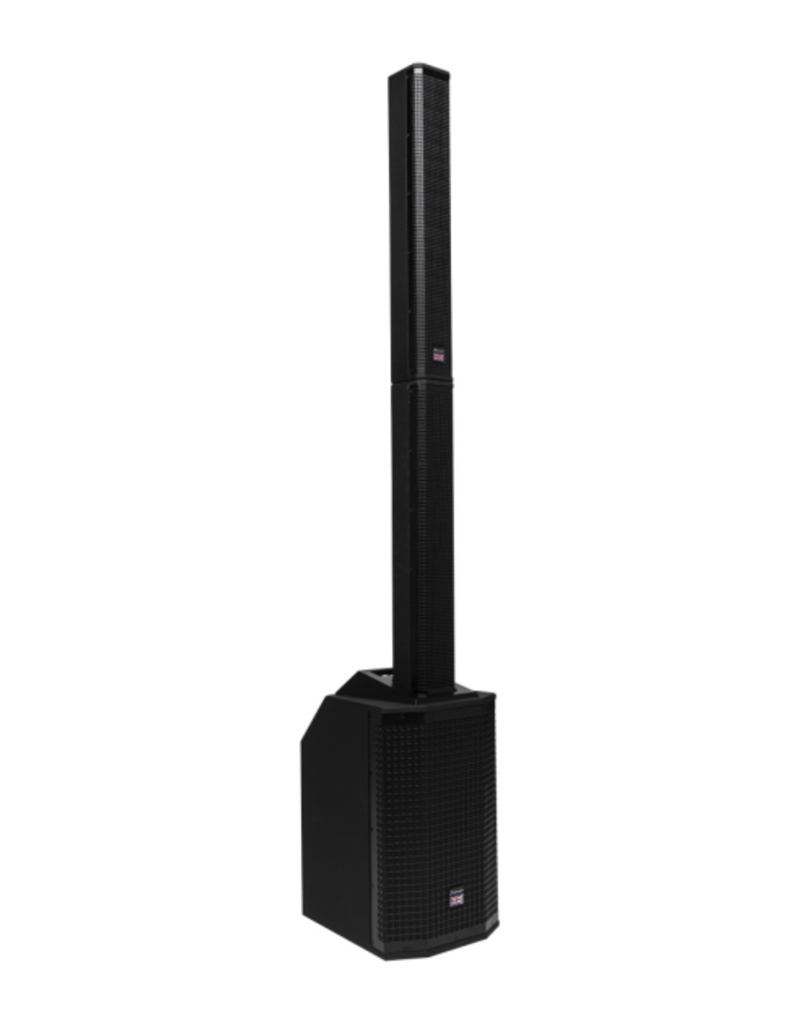

Vertical array speaker:
MF – 6 x 3″ mid-range speaker
HF – 1 x 1″ compression driver
Coverage (HxV) – 120° x 30° advanced coverage
Rated Power – 180 W (RMS)
Rated Impedance – 6 Ohms
Dimensions(WxHxD) – 117x807x124.3mm (each section)
Net Weight (kg) – 8kg (total both sections)
Sub module:
DIRECT 101M SUBWOOFER:
Speaker type – 1 x 10″ transducer
Rated Power – 250W (RMS)
Rated Impedance – 4Ω
Dimensions(WxHxD) – 357 x 612 x 437 mm
Net Weight (kg) – 22.5kg
DIRECT 101MX AMPLIFIER:
Rated power – 2 x 300W RMS
Frequency range – 20Hz – 20kHz
DSP conncection – 24 bit (1in-2out)
Dsp mixer with reverb:
Inputs – 4 Channels: 2x Mic/Line, 1x Hi-Z, 1x RCA/Bluetooth)
Input connectors – XLR/6.35mm jack combo, 6.35mm jack unbal, 1x RCA jack
Impedance – MIC/LINE: 10k Ohms, HI-Z: 470k Ohms, RCA: 10k Ohms
Output connector Mix output: XLR (PRE DSP)
Controls – DSP adjust, Sub Level, Channel Gain, MIC/LINE Reverb.
DSP – 24-bit dip with display.
DSP functions – Mode, EQ, Gain, HPF, Limit, Delay, Bluetooth.
Connectivity – Bluetooth 5.0.
